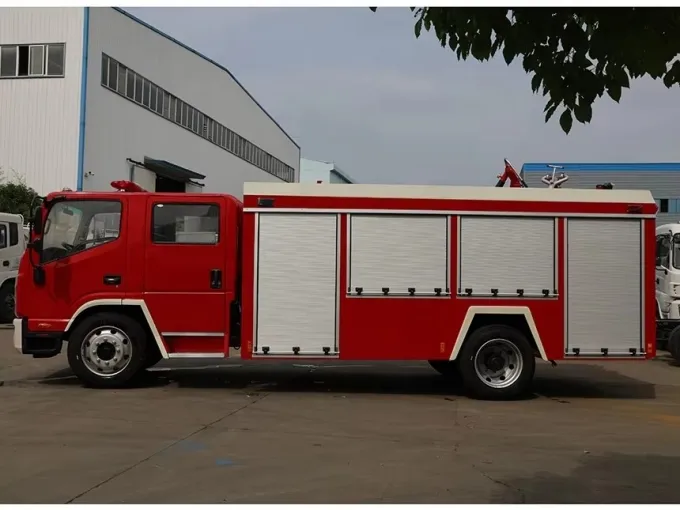

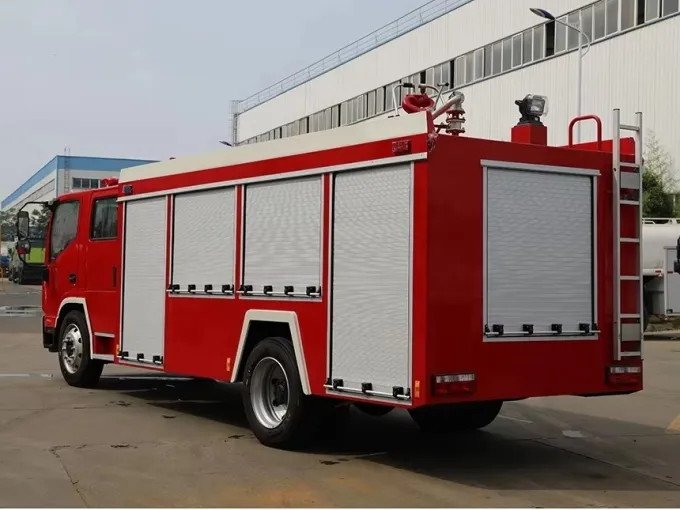

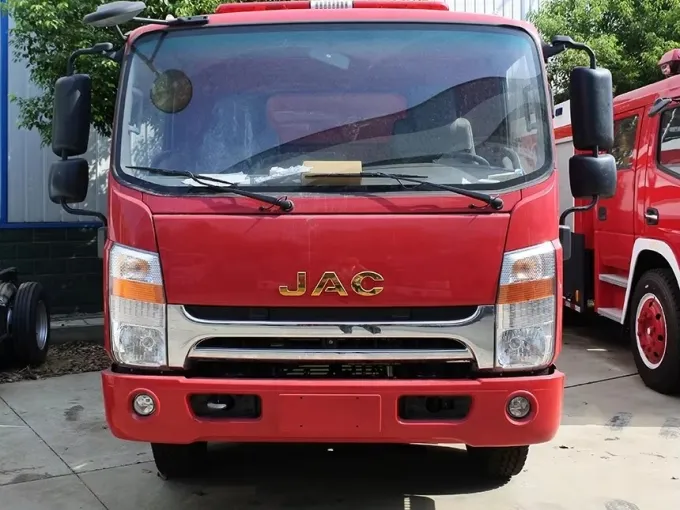

JAC double cab 1000gallon 4000liters fire fighting truck
Manufacturerd by our company professional sub-factory, fire truck factory
Famous fire equipment brand, CB10/30 fire pump, large power and large range
Water tank inside with anticorrosive resin paint, also can choose stainless steel water tank
Specificated fire equipment compartment and pump compartment
Fire water tank: 1000liters to 20000 liters
Pump: CB10/20. CB10/30. CB10/40. CB10/50
Pump pressure: common pressure pump, low pressure pump, high pressure pump
Cabin: single row cab, double cab
| Specifications of CLW5090GXFSGHF3 Fire Fighting Truck | |
| Vehicle Basic Parameters | |
| Model | CLW5090GXFSG3 |
| Water Tank | 4000liters |
| Chassis brand & Year | JAC, 2018 new |
| Wheel Drive | 4x2. LHD |
| Overall Dimension | 7120*2200*3050mm |
| Gross Weight | 9560kg |
| Curb Weight | 6200kg |
| Load capacity | 5 tons |
| Engine | Cumins B140 33 140HP Eruo 3 diesel engine |
| Wheelbase | 4150. 3800mm |
| Tires: | 6+1. 275/75R17.5. 8.25-16 |
| Cabin | Double cab, 2+4 seats |
| Transmission | Manual, 6 front gears and 1 rear gear |
| Brake | Air brake |
| Max Speed | 90km/h |
| Pump | |
| Model | CB10/30 |
| Flow | 30L/s |
| Pressure | 1.0MPa |
| Water diversion time | <30s |
| Water suction depth | 7m |
| Water Tank | |
| Volume | 4000liters |
| Material | Carbon steel Q235. inside with anticorrosive resin paint |
| Manhole | One unit |
| Flow valve | One unit |
| Fire Monitor(shooting nozzle) | |
| Model | PS30 |
| Pressure pump | 1.0MPa |
| Flow | 30L/s |
| Range | >50m |
| Rotation angle | 360° horizontal |
| Other Config. | |
| Fire pump compartment | One unit, with three sets aluminum shutter doors |
| Fire tool compartment | 6 sets, aluminum shutter doors |
| Fire tool | 21 sets |
| Lighting light | One unit, at rear top of truck |
| Side warning light | 4 pcs |
| Spare tire | One unit |
| Water hose | 2 pcs, 3m long ruber hose per pcs |
| Ladder | One set |
| User manual | One pcs |
| Reflective stickers | Factory standard |
| Logo painting & Color | Customzied |
