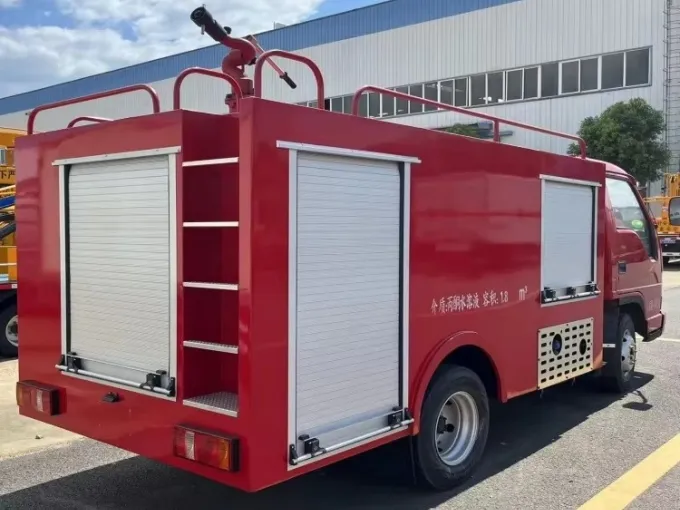

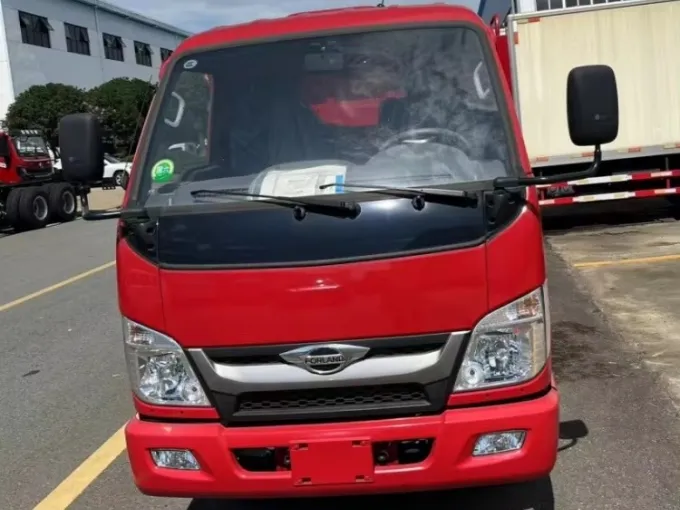

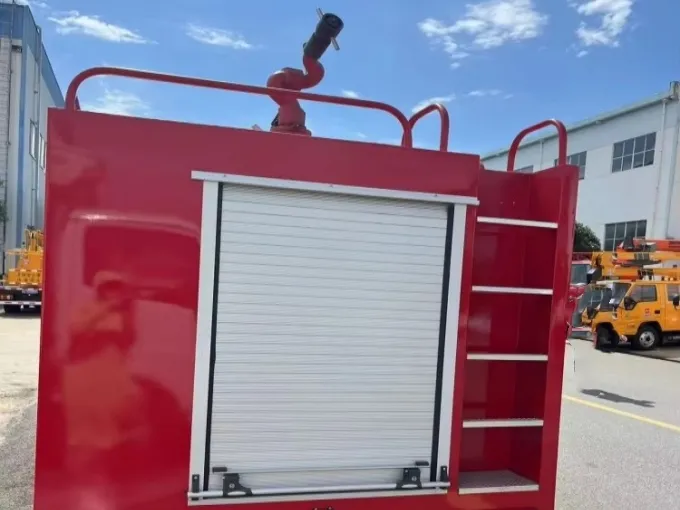

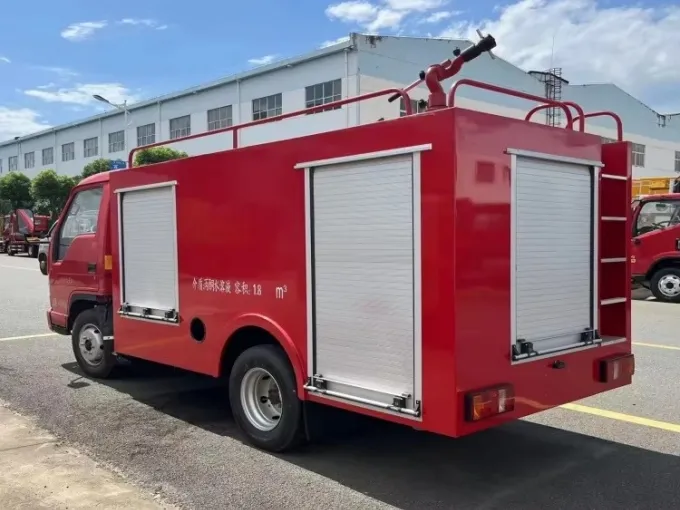

FOTON 4x2 1800L fire extinguishing water tanker

$25,000/Unit

description

Specification

item	value
Drive Wheel	4X2
Type	Tanker
Transmission Type	Manual
Condition	New
Horsepower	150hp
Tank Capacity	3001 - 5000L
Emission Standard	EURO 5
Fuel Type	Diesel
Max. Work Height	>40M
Size	647019802660
Place of Origin	China
province	Hubei
Brand Name	FOTON
Product Name	Fire water tanker
Fire truck type	Water Tank Fire Firefighting Truck
Extinguishant	Water Tand Foam
Application	extinguish a fire
Tank Volume	1800L
Tank body material	The water tank is made of high-quality carbon steel plate. The interior of the tank body is subjected to anti-corrosion treatment. The bottom plate of the water tank is 4mm carbon steel plate, the side plates and sealing plates are 3mm carbon steel plates, and the top plate is 3mm carbon steel checkered plate
Fire pump	Model: CB10/40 normal pressure fire pump Flow rate: 40L/s Pressure: 1.0Mpa Maximum suction depth: 7m Priming time: ≤35s Vacuum pump type: Piston type Installation form: Rear-mounted.
Vehicle-mounted fire monito	Model: PS8/40W Flow rate: 40L/s Range: ≥60 m Pressure: 0.8MPa Rotation angle: Horizontal 360°, elevation -35° to 70°
power take off	Type: Sandwich type (full power). Operation: Controlled by solenoid valve (electric operation). Cooling method: Forced adjustable water cooling. Lubrication method: Splash oil lubrication.
Equipment configuration	40 normal pressure water tank fire truck Standard equipment configuration table for equipment - internal buckle type Category Serial No. Name Specification Quantity Unit Remarks On-board technical documents 1 Fire truck operation manual 1 copy 2 Fire truck equipment configuration table 1 sheet 3 Automobile chassis operation manual 1 copy 4 Automobile chassis certificate 1 sheet 5 Fire pump operation manual 1 copy 6 Accessories (tools) on board 1 set Accessories and tools on the original chassis Fire-fighting equipment 1 Suction hose 125×4 meters 2 pieces Internal buckle type 2 Water filter FLF125 1 piece Internal buckle type 3 Water distributor FII80/65×2-1.6 1 piece Internal buckle type 4 Water collector JII125/65×2-1.0 1 piece Internal buckle type 5 Fire hose 13-65-20 6 reels Low pressure; internal buckle type 6 Fire hose 13-80-20 4 reels Low pressure; internal buckle type 7 Fire hose 13-65-5 1 reel Internal buckle type (for external water injection) 8 Reduced diameter adapter KJ65/80 1 piece Internal buckle type 9 Fire hose wrapping cloth DT-SB 4 pieces 10 Fire hose protection bridge Length 570 2 pairs 11 Fire hose hook 4 pieces 12 Above-ground hydrant wrench QT-DS1; length 370 1 piece 13 Underground hydrant wrench Length 970 1 piece 14 Suction hose wrench FS125 2 pieces 15 Direct current switch nozzle QZG3.5/7.5; 65 1 branch Low pressure; internal buckle type 16 Multi-purpose nozzle QDH6.0/8; 65 1 branch Low pressure; internal buckle type Breaking and rescue tools 1 Fire extinguisher 3kg/ABC 1 unit 2 Spade Length 860/1050 1 piece 3 Fire iron Length 900 1 piece 4 Fireman's belt axe GF-285; length 285 1 piece 5 Fire flat axe QTF-PF; length 810 1 piece 6 T-shaped pick QTF-DG; 700/900 1 piece 7 Rubber hammer 1 piece Remarks 1. Any other equipment and components not listed in this configuration table are optional as required by the user. 2. When dispatching the vehicle, the salesman should take the vehicle pick-up list and this table to the warehouse to go through the procedures for collecting equipment configuration.

fire fighting truck

Company Profile

FAQ

1. who are we?

We are based in Hubei, China, start from 2024,sell to Domestic Market(50.00%),Africa(20.00%),Southeast Asia(15.00%),Mid East(15.00%). There are total about 1000+ people in our office.

2. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

3.what can you buy from us?

Refrigerated truck,sanitation vehicles,Aerial work vehicle,feed transport vehicle,bulk cement truck

4. why should you buy from us not from other suppliers?

Has advanced refrigerated truck production technology and professional R & D team. Continuous technological innovation to improve the performance and efficiency of refrigerated trucks. The ability to customize personalized refrigeratio

5. what services can we provide?

Accepted Delivery Terms: null;

Accepted Payment Currency:null;

Accepted Payment Type: null;

Language Spoken:null
