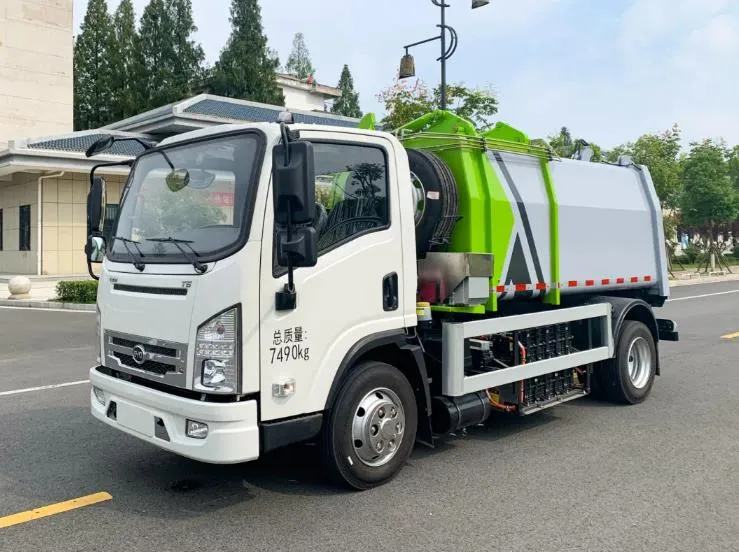

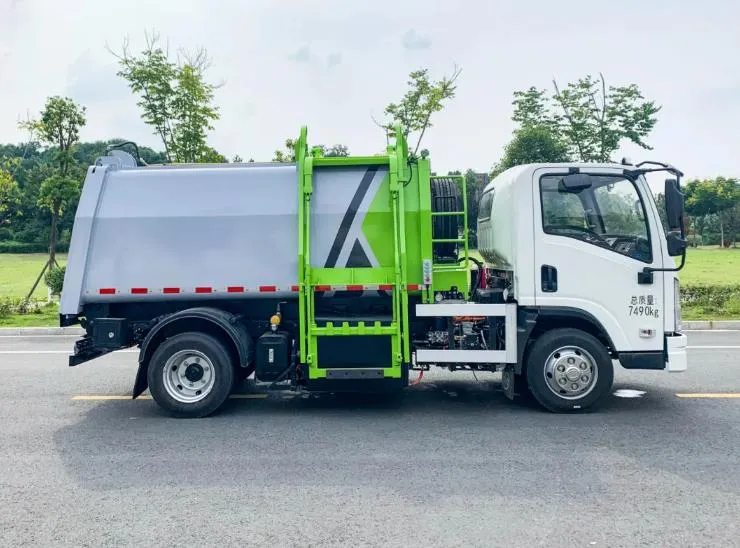

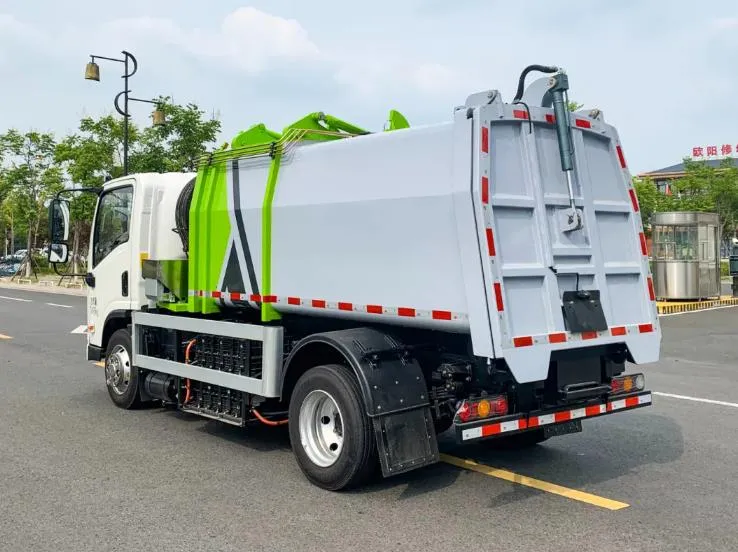

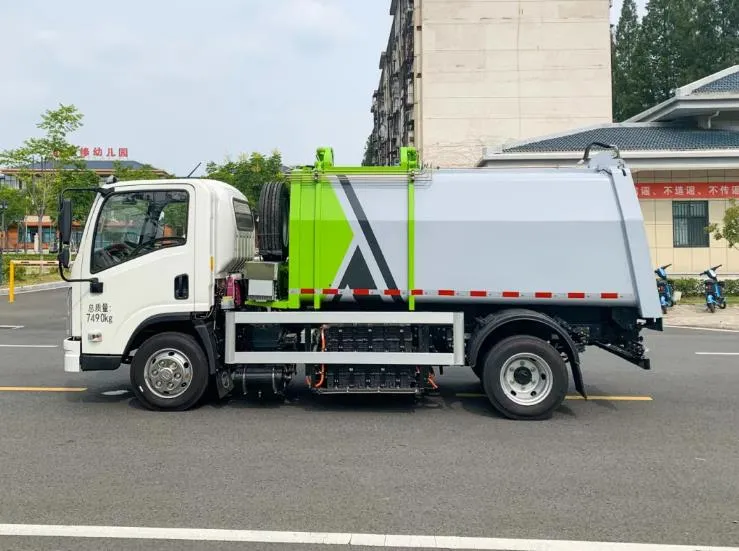

The BYD BEV Pure Electrical Battery Side Loading Compression Garbage Truck is the perfect solution for efficient and eco-friendly waste collection. This electric sanitation truck is equipped with a 6m3 garbage container, providing ample space for waste disposal.
With its pure electric powertrain, this garbage truck offers zero-emission operation, making it an excellent choice for environmentally conscious cities and communities. The BYD BEV garbage truck is designed to minimize noise pollution and reduce carbon footprint, ensuring a cleaner and healthier environment.
| Technical Parameters of the Entire Vehicle | |
| Kerb Weight (Kg) | 4530 |
| Waste bin Volume (m3) | wastebin:6m3 |
| Tank Material | Q345 |
| Overall Dimensions (mm) | 6780×2350×2870 |
| Wheelbase(mm) | 3300 |
| Garbage container effective volume | About 6 cubic meter |
| Body shape | The new Arc aquare type |
| The body material | Q345 manganese steel (side:3mm, base flloor: 4mm) |
| Compression ratio of hydraulic push shovel | 1:2 or higher |
| Dirty water collection tank volume | Range from 200 liters-300 liters |
| Garbage container rear door open type | Automated by hydraulic cylinder,or Manual operation |
| Hydraulic lifter a cycle time(Lift and descent) | 50s or less |
| Discharge cycle time/shovel pushing time | 45s or less |
| Hydraulic cylinder lifting angle | about 50 degree |
| The control mode | Automatic or manual.1 person can handle |
| Hydraulic system pressure | 18MPa |
| Multiple directional control valve | Jiangsu oil valve in China,or import parts |
| Hydraulic oil pump | Hefei pump in China,or import parts |
| Conversion force retractor | Zhejiang jiashan in China,or import parts |
| Electronic control system (PLC one-button cycle) | Made from Taiwan China,or import parts |
| Trash bin suspension type | Rear suspension for 120L,240L |
CLW Group is a top 500 corporation in China,focusing on special vehicles manufacturing since 1988.The company has an annual production capacity of 100.000 special trucks including LPG tanker trucks,fire trucks,water trucks,garbage trucks,truck-mounted crane,tow trucks,ambulance and other special vehicles.
We can produce many kinds of garbage trucks, including skip loader garbage truck, compactor garbage truck, garbage collection truck, garbage transportation truck, container garbage truck, hydraulic lifter garbage truck, self-loading garbage truck, arm-roll garbage truck, hanging bin garbage truck, dump garbage truck, hermetic garbage truck, sealed garbage truck, arm shaking garbage truck, etc.
The registered trademark of which is "Chengliwei", and the product code is "CLW". It's the important partner of Dongfeng and Jiefang. And mainly engaged in manufacturing all kinds of special vehicles and selling full vehicle and fittings to large-scale manufacturers.
The company is a hightech enterprise in hubei province and has passed the certification of ISO9001,ISO16949,GJB9001 and CCC authentication of automobile products.
1.Our company ChengLi Special Automobile Co.,LTD has manufactured special truck for decades.
2.Our company possesses some advanced technologies and mature craftworks.
3.The truck produced by us has high quality and low price.
4.Our trucks are equiped with high quality and efficient equipments.
5.Our trucks are completely produced according to your demands and needs, they are special, professional and unique for you.
1. Q: How about the quality of trucks of your factory?
A: Our trucks get ISO 9001: 2008 and CCC, B&V and other related certificates. The chassis and spare parts come from the original manufacturers with anti-fake label.
2. Q: How many years of your company's service, especially after-sale service?
A:CLW group has been in this field for nearly 15 years and has strong production and distribution capability, we can produce your products in 15 working days. We offer 1 year after-sale service.
3. Q: Is there any advantages of your price?
A: CLW Group is one of the most important suppliers of Sinotruk, Shacman, Dongfeng, FOTON and FAW, which provides guarantees for reasonable price and good quality.
4. Price term: FOB, CIF.
5. Payment: 30% deposit after order confirmation, 70% balance should be paid before delivery. All are by T/T, L/C.
6. Delivery time: 25 working days after payment is received.
7. Standard Steering: Left-hand drive, if you need Right-hand drives, please inform us, will make special order for you.
